Application:

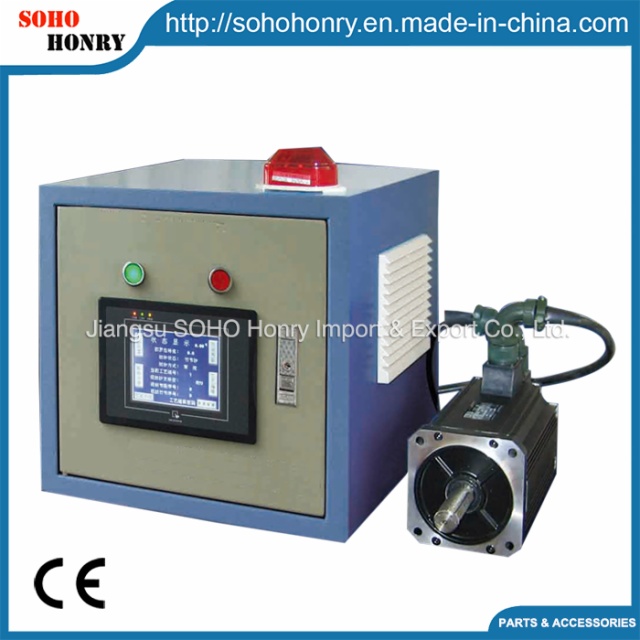

The slub yarn device is suitable to all kinds of pure blending spinning of staple or filament fiber. If working with other attachments, it can spin spandex core-spun slub yarn, AB slub yarn, color-dot slub yarn, polyester high or low elasticity core-spun slub yarn and so on series fancy yarn with slubs.


Main parameters:

The shortest slub length : about 20mm
The shortest slub distance: about 20mm
Slub thickness: 1~ 6 times
Available yarn counts: 97.17 ~9.717 tex (6s~60s)
Suitable ring frames type: all the usual type of ring frame China or overseas can be reformed, and special ring frame must be measured before reforming.

Main functions:

1. Displaying status of spinning
2. Passwords protection
3. Slub distance & length unify regulation
4. Slub shape adjustment
5. Mechanical setup
6. Unify set up
7. Parameter edit
8. Alarm
9. Spinning select
10. Systemic set up
11. Intelligent spinning
12. Message book
